Modern RAG Architecture: How Context Engineering Improves AI Accuracy

When teams design RAG architecture for production today, they rarely stop at the classic "retrieval + LLM" scheme. Modern RAG architecture is a multi-layered system in which a separate and, essentially, decisive component becomes context engineering. It is how the system forms, ranks, and assembles context before passing it to the model that determines the accuracy, groundedness, and stability of AI system responses in production. For any AI system working with a company's real knowledge, it is this layer – not the choice of a specific LLM – that most often becomes the bottleneck.

In this article, we will break down which layers make up modern retrieval augmented generation architecture, why context engineering has become a critical accuracy factor, and which practical solutions distinguish mature production RAG from a demo prototype.

If a few years ago RAG architecture followed a simple pipeline "embeddings → vector search → prompt → LLM," today that's not enough even for a mid-sized enterprise AI case. Naive RAG works decently on demo datasets, but quickly breaks down on real data:

• documents contradict one another;
• metadata is missing;
• context is often irrelevant or redundant.

Advanced RAG added reranking, hybrid search, and basic filtering to this scheme – this already significantly improved retrieval quality. Teams learned to combine semantic search with lexical search, to experiment with embedding models. But the system remained a set of isolated optimizations without a shared logic for how the results should merge into a unified context.

The real transition happened when teams started looking not at individual techniques, but at the architecture of the full cycle: from the knowledge source to the final answer. Instead of pinpointing improvements to the retrieval pipeline, a systemic view emerged of how information moves through all layers of the system.

Modern RAG architecture is a system that manages the entire lifecycle of information, not a single query to a vector database. At this point, part of the industry has stopped separating these concepts altogether: RAG is increasingly seen not as a standalone architecture, but as one of the practices within the broader discipline of context engineering, alongside MCP agentic orchestration, and memory management. The debate "Is RAG dead or not?" is a false one: RAG isn't disappearing; it's becoming one of the tools in a larger set.

The main architectural shift is simple: instead of asking "how to find relevant documents," engineers now ask "how to assemble the context that enables the model to produce a correct, well-grounded answer." Models with context windows of millions of tokens have made it tempting to abandon retrieval altogether, but in practice this doesn't work: without ranking and filtering, a larger window mostly adds cost, not accuracy — more on why in the next section.

Consider a simple illustration. Imagine a customer-support assistant with access to two years of product documentation and release notes. A naive approach would dump every document mentioning the product name into the context window and let the model figure out the answer. In practice, the model would end up weighing an outdated pricing page from a year ago just as heavily as this week's update — and could easily quote the wrong one. A well-designed Context Layer would filter by recency and document status first, rank the remaining candidates by relevance to the specific question, and only then hand the model a short, clean set of facts to work with. The difference between these two approaches — not the choice of LLM — is usually what separates a demo from a production-grade assistant.

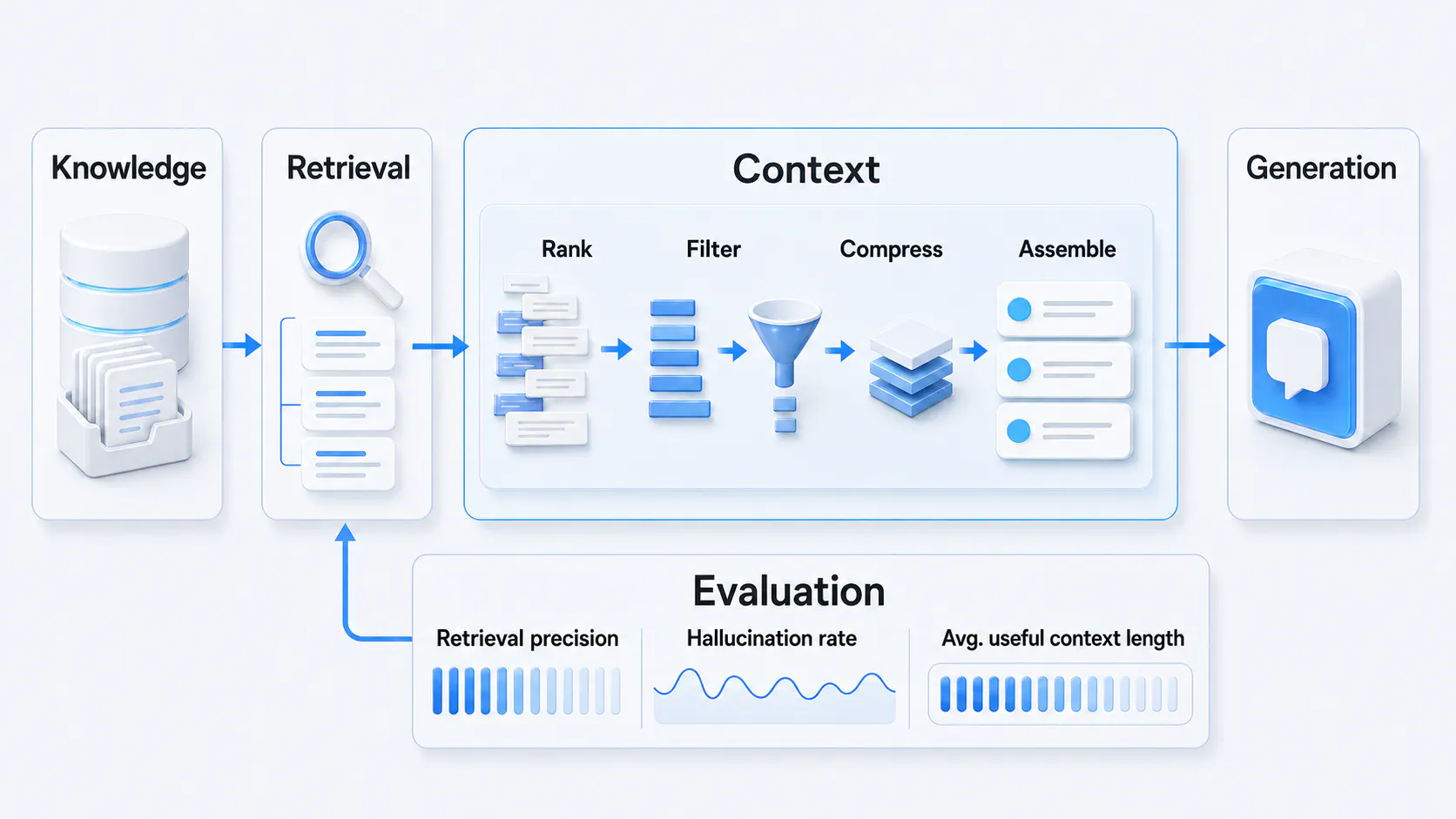

If you were to draw an RAG architecture diagram for a typical production system, it would consist of five functional layers. Each of them solves its task, and none can compensate for the weakness of another.

The Knowledge Layer is responsible for the structure of the knowledge base:

• data sources;
• storage format;
• chunking strategy;
• index updates.

If the knowledge base is low-quality or outdated, no sophisticated retrieval logic can save it.

The Retrieval Layer performs knowledge retrieval – searching for candidates via vector search, semantic search, or hybrid search, which combines lexical and vector-based approaches. This is the retrieval pipeline in the narrow sense: it's responsible for the speed and completeness of the sample, not for the final quality. Separately, it's worth mentioning the Model Context Protocol (MCP) – a standardized way for the model to access external tools and data sources during response generation. In 2026 production systems, MCP is increasingly becoming the layer through which the Context Layer supplies the model not only with documents but also with actions – API calls, database queries, calls to third-party services.

The Context Layer is the layer that takes the retrieval results and turns them into high-quality, compact, relevant context for the model. This is where the following happen:

• ranking;
• filtering;
• compression;
• final context assembly.

This layer determines what enters the context window and what gets discarded as noise.

The Generation Layer is the large language model (LLM) itself, which generates a response based on the assembled context and instructions. The quality of this layer depends not only on the model itself but also on how competently the input context is constructed.

The Evaluation Layer is responsible for continuously evaluating retrieval quality, relevance, and response grounding – without it, it's impossible to track the system's degradation in production.

All five layers are interconnected, but the Context Layer plays the coordinating role by transforming raw retrieval results into structured context for generation. In practice, teams often spend months optimizing embeddings or the vector database while leaving context selection and assembly largely untouched. As a result, retrieval works, but the model still produces inaccurate responses because of irrelevant context.

This is why mature enterprise AI teams are shifting their focus from choosing embedding models to ensuring the model receives relevant, clean, and well-structured context. Even the best retrieval pipeline cannot compensate for a weak Context Layer. In 2026, this layer increasingly manages not only relevance but also access, data provenance, and freshness. Without this level of control, even accurate retrieval creates compliance and security risks.

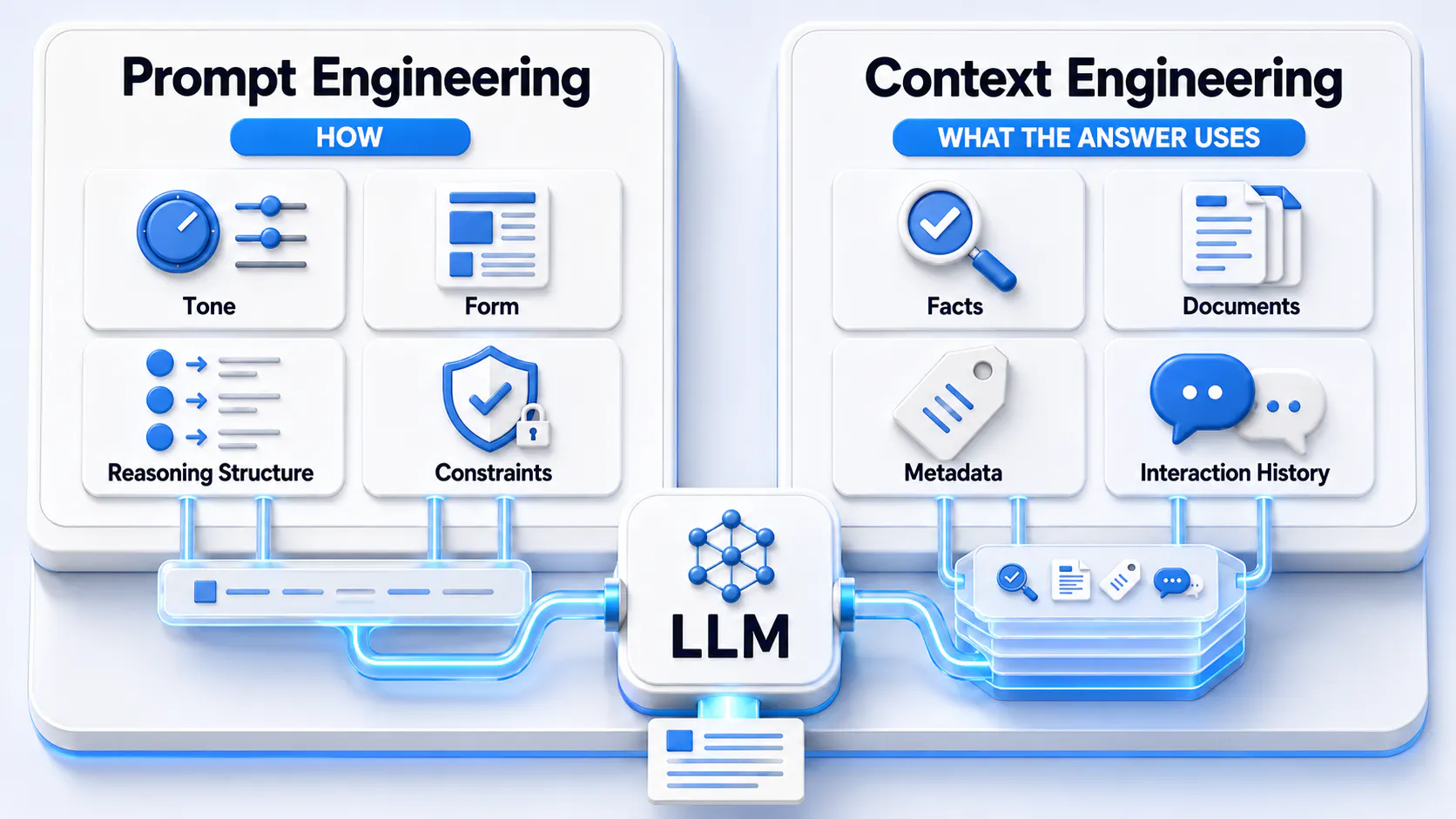

Context engineering is the discipline of designing exactly what context, in what volume, and in what order enters the model. This is not the same as prompt engineering, although these concepts are often confused.

Prompt engineering determines how the model should respond:

• tone;
• form;
• structure of reasoning;
• constraints.

Context engineering determines what it responds because of. The context that forms the foundation for generating a response may include:

• facts;
• documents;
• metadata;
• interaction history.

One well-formulated prompt, built according to all the rules of prompt engineering, cannot compensate for irrelevant or contradictory context – the model will simply confidently generate an incorrect answer based on what it was given. This is the key distinction of context engineering: it doesn't deal with the model's behavior, but with the factual base on which that behavior is grounded.

This is precisely where the main cause of hallucinations in production RAG systems lies. When irrelevant fragments, outdated documents, or duplicates without clear prioritization end up in the context window, the model is forced to "infer" connections that don't exist in the real data. Researchers have documented an effect known as "context rot": the quality of the model's response drops as the volume of context grows, even if all of that context is formally relevant. A long context, in other words, is not by itself a guarantee of accuracy – it's a potential source of noise, and this is the single biggest reason quality over quantity keeps coming up throughout this article.

This doesn't diminish the role of prompt engineering: clear instructions remain important for the model's format and behavior. But for the accuracy of an AI system in production, it is the quality of the context, not the complexity of the prompt, that is the decisive factor. Teams that have realized this are investing significantly more resources in context engineering and the Context Layer than in endless prompt iteration.

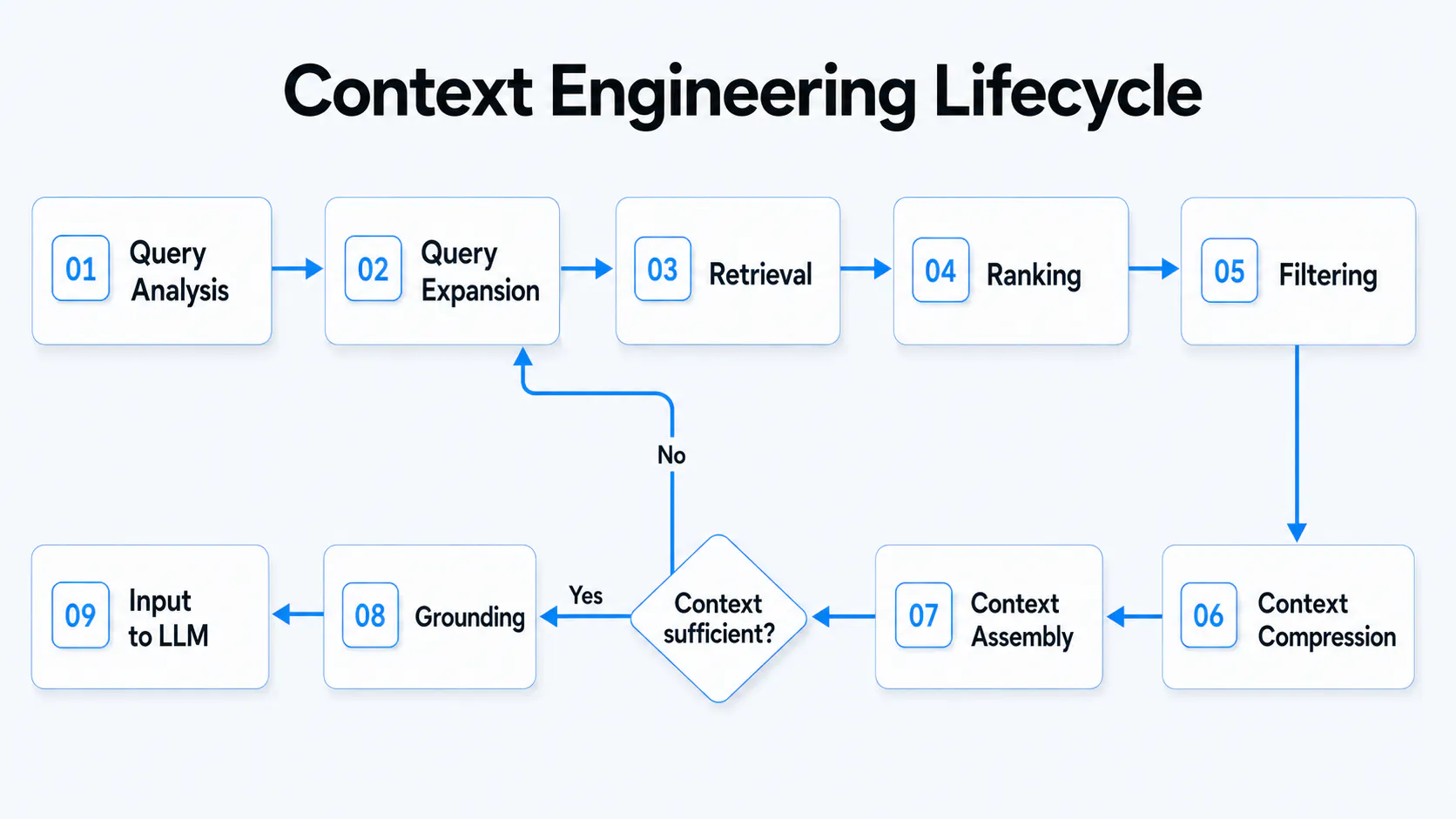

Context in a mature RAG LLM architecture doesn't appear from a single query to a vector database – it goes through a full processing cycle.

Query Analysis. The system analyzes the user's query: intent, type of question, need for structured or unstructured data. This determines which retrieval strategy to apply.

Query Expansion. The initial query is expanded with synonyms, related terms, or rephrased variants to cover a broader semantic space and not lose relevant document chunks formulated in other words.

Retrieval. The actual search is performed – a combination of vector search based on embeddings and lexical search within hybrid search. This is the point where knowledge retrieval – and, more broadly, information retrieval as a discipline – turns from an abstract task into a concrete list of candidates obtained from the knowledge base.

Ranking. The retrieved fragments are ordered by relevance to the query. A reranking model is often applied here, separate from the one used for the initial vector search – it evaluates semantic correspondence more precisely.

Filtering. Duplicates, outdated or contradictory fragments are filtered out, as well as data that doesn't match the metadata filters (access rights, date, source, document type).

Context Compression. Long document chunks are compressed down to their essence while preserving key facts – this is critical for the efficient use of the context window, especially when the available volume is limited or expensive in tokens.

Context Assembly. The selected and compressed fragments are assembled into a single structure: the order, priority, and presentation format are determined – tables, lists, and quotes with a reference to the source.

Grounding. Each fragment of context is tied to a specific source, which allows the model (and the user) to verify the origin of the fact and significantly reduces the risk of hallucinations.

Input to LLM. The assembled context, together with the prompt, is passed to the language model to generate the final response.

In agentic systems, this cycle is rarely linear: the agent itself evaluates whether the gathered context is sufficient for a confident answer and, if necessary, returns to the Retrieval or Query Expansion stage, repeating the cycle iteratively rather than going through it once. The relevance of a response is the result of the sequential work of at least seven or eight stages, not a single successful query to the database.

It is precisely the coordinated work of all these stages that ensures stable response quality. If even one of them is missing, Production RAG may show good results on test examples but unpredictably lose accuracy under real load.

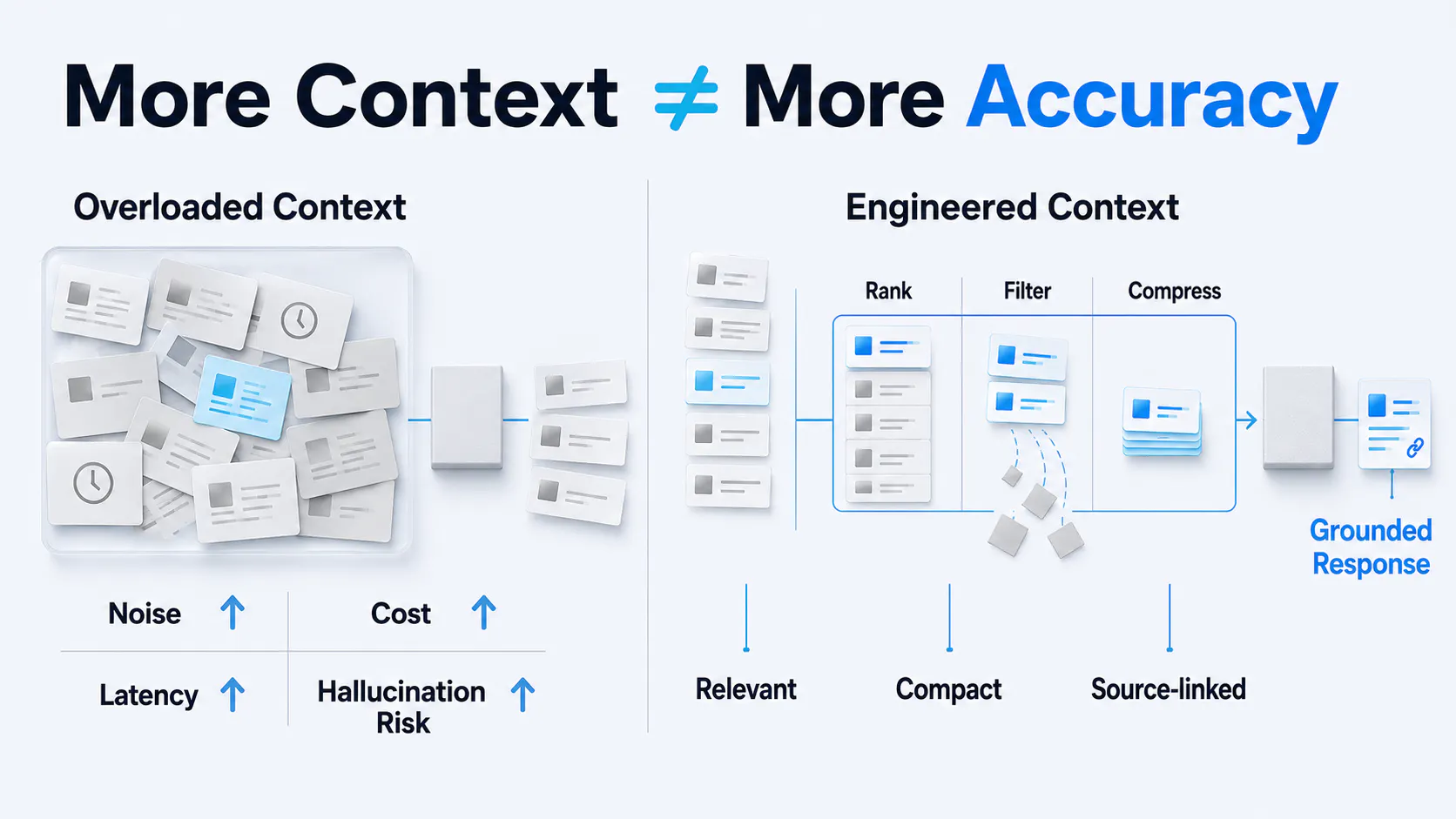

Prioritize relevance, not maximum context volume. The temptation to "stuff" as much data as possible into the context window is intuitively understandable, but – as noted above – excessive context reduces relevance and increases the likelihood of hallucinations because the model loses focus on the facts that actually matter. In most projects we've worked on, the biggest quality gain came not from switching to a new LLM, but from improving the logic of context selection and assembly.

Use metadata to the fullest. Filtering by date, source, document type, or access level allows irrelevant document chunks to be cut off even before the ranking stage, which significantly saves computational resources.

Combine hybrid search with reranking. Vector search is good at finding semantically similar fragments but performs poorly with exact terms or identifiers. Combining it with lexical search and subsequent reranking delivers significantly higher retrieval quality than either approach alone.

Reduce noise in the context. Every extra fragment is not just wasted tokens, but a potential source of confusion for the model. Aggressive filtering at early stages saves resources at later ones. This is also a direct matter of economics: an extra token in the context means additional inference cost and increased response latency. In a production system with thousands of queries per day, the difference between a concise and an overloaded context has a tangible impact both on the infrastructure bill and on the product's speed.

Continuously evaluate retrieval quality. Without systematic measurement of relevance and grounding, system degradation remains invisible until it shows up in user complaints.

Filter by access rights before ranking, not after. Checking whether a data fragment is even permitted to be used for this particular user or query should happen at the entry point to the pipeline. This is both safer and cheaper than filtering out such fragments after the costly reranking stage.

Keep indexes up to date. Knowledge that's outdated by a few months is one of the most common hidden causes of low accuracy in production RAG.

Monitor retrieval quality in real time. Metrics such as retrieval precision, hallucination rate, or average length of useful context provide an early warning about problems before they affect users.

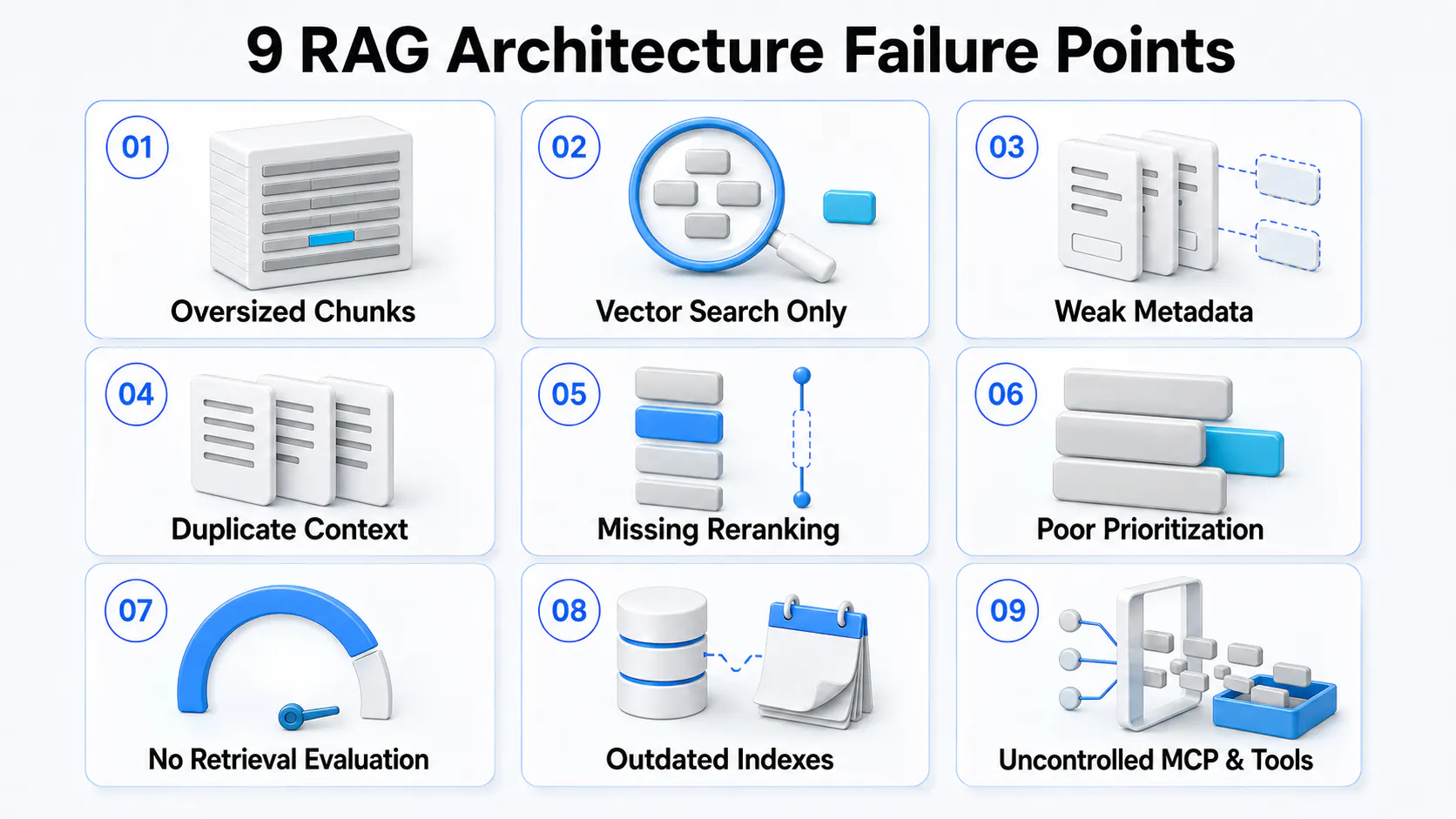

Chunks that are too large. If the chunking strategy builds an overly broad document chunk, a lot of irrelevant "noise" ends up in the context alongside the needed fact, which reduces generation accuracy. A proper chunking strategy considers the structure of the document itself, rather than mechanically splitting the text by character count.

Relying solely on vector search. Purely semantic search handles exact names, codes, and numbers poorly – this is where hybrid search is critically needed.

Weak metadata strategy. Without structured metadata, quality filtering is impossible, and the system is forced to rely exclusively on semantic proximity, which is insufficient for enterprise AI scenarios.

Duplicates in the context. Identical information from multiple sources takes up space in the context window without adding value, effectively displacing unique relevant fragments.

Absence of reranking. Without a separate ranking stage, the system relies on the initial embeddings similarity, which is often not precise enough for the final selection.

Poor context prioritization. Even with relevant data on hand, the system may present it in a suboptimal order, causing the model to pay less attention to the most important facts.

Ignoring retrieval evaluation. Without an evaluation cycle, it's impossible to distinguish a system that truly works from one that merely looks functional on a limited set of test queries.

Outdated knowledge indexes. A knowledge base that isn't updated in sync with real sources gradually turns even a well-designed RAG architecture into a source of outdated answers.

Lack of control over MCP and tools. When an agent independently accesses external sources or tools via MCP without a clear policy on exactly what from those responses enters the model's context, the Context Layer loses control over the quality and provenance of the data. The system slides back into the uncontrolled "noise" it was supposed to guard against.

A typical situation we see during RAG system audits is well-configured retrieval and a modern LLM, but the absence of a clear strategy for ranking, filtering, and context assembly.

Most of these mistakes arise not from a lack of technology but from the absence of a systematic approach to context engineering. A team may use a modern vector database, an accurate embeddings model, and a powerful language model and still get unstable results if the Context Layer is treated as a secondary component rather than as a separate architectural responsibility.
